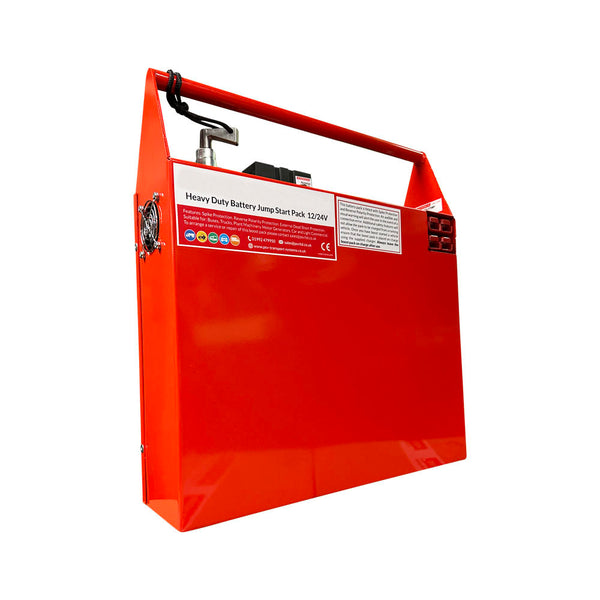

GPT1224VBP

£1,550.00
Heavy Duty Battery Start Boost Jump Pack, 12/24V. For Buses, Fleet Vehicles, Very Large Trucks, Very Large Plant Machinery and Very Large Motor Generators Specifications  Part Number GPT1224VBP Voltage 24V...

Heavy Duty Battery Start Boost Jump Pack, 12/24V. For Buses, Fleet Vehicles, Very Large Trucks, Very Large Plant Machinery and Very Large Motor Generators

Specifications
Part Number GPT1224VBP
Voltage 24V
Battery Capacity (10 hour rate down to 10.8V) 26Ah
True Peak Power Transfer Current 1000 Amps
Width 382mm
Depth 110mm
Height 490mm
Weight 25kg
For Equipment Starting Buses, Trucks, Plant Machinery, Motor Generators
Related Parts
Part Number GPT24VBP GPT24VHDBP GPT1224VBP GPT1224VHDBP
Voltage 24V 24V 12/24V 12/24V
Battery Capacity (10 hour rate down to 10.8V) 26Ah 37Ah 52/26Ah 74/37Ah
True Peak Power Transfer Current 1000 Amps 1500 Amps 2000/1000 Amps 3000/1500 Amps
Width 382mm 490mm 382mm 490mm
Depth 110mm 110mm 110mm 110mm
Height 490mm 490mm 490mm 490mm
Weight 25kg 32kg 26kg 33kg
For Equipment Starting Buses, Trucks, Plant Machinery, Motor Generators Buses, Very Large Trucks, Very Large Plant, Very Large Motor Generators Buses, Trucks, Plant Machinery, Motor Generators Buses, Very Large Trucks, Very Large Plant, Very Large Motor Generators
Accessories
Part Number Description
GPTBPCHAR 24V Jump Start Boost Pack Charger
GPTBPREL Masterswitch Relay 24V, 150 Amp
GPTBPFUSHOL Mega Fuse Holder
GPTBPFUSE Dark Green Mega Type Fuse
GPTBPTROL Heavy Duty Trolley
GPTBPSTR Tie Down Strap, 5m x 25mm
GPTBPTROLW Wheels for Heavy Duty Jump Start Boost Pack Trolley
GPT24VLEAD-175A-2.3M Jump Leads, Booster Plug to 175 Amp Connector, 2.3 Metre Length
GPT24VLEAD-350A-2.3M Jump Leads, Booster Plug to 350 Amp Connector, 2.3 Metre Length
GPT24VLEAD-PLG-5M Jump Leads, Booster Plug to Booster Plug, 5 Metre Length
GPT24VLEAD-PLG-10M Jump Leads, Booster Plug to Booster Plug, 10 Metre Length
GPT24VSKT Booster Socket
GPT24VPLG Booster Plug
GPTCON50RED Red High Current Connector 50 Amp
GPTCON175RED Red High Current Connector 175 Amp
GPTCON350RED Red High Current Connector 350 Amp
GPTCON50GREY Grey High Current Connector 50 Amp
GPTCON175GREY Grey High Current Connector 175 Amp
GPTCON350GREY Grey High Current Connector 350 Amp
GPTCONHAN50 Handle for 50 Amp High Current Connector
GPTCONHAN175 Handle for 175 and 350 Amp High Current Connector
Features
Property Data
Protection Voltage Spike Snubbers
Auto Lockout for Reverse Polarity Protection, Timed switch off after 9 minutes, Battery External Venting if abused, External Dead Short Protection, Welded Contactors, Wrong Voltage and Low Pack Battery Voltage
Ventilation and Cooling UPGRADE Case Extractor Fan
Overcharge Protection UPGRADE Avoids the pack being overcharged if it is left connected to a running vehicle
Reverse Polarity Full Protection UPGRADE In addition to visual indicators already in specification
Audible and Visual Low Battery Warning Siren
Indicators Battery Cut-out Siren
Green Power on LED
Red Reverse Polarity LED
Electronic Monitoring 24V Charger and Time out Usage
